The Ghost E-Asx Essential is a full suspension e-mountain bike featuring a sophisticated aluminium frame, a snappy Bosch motor and 160 mm travel.
The Ghost E-Asx Essential is a full suspension e-mountain bike featuring a sophisticated aluminium frame, a snappy Bosch motor and 160 mm travel.
Ghost

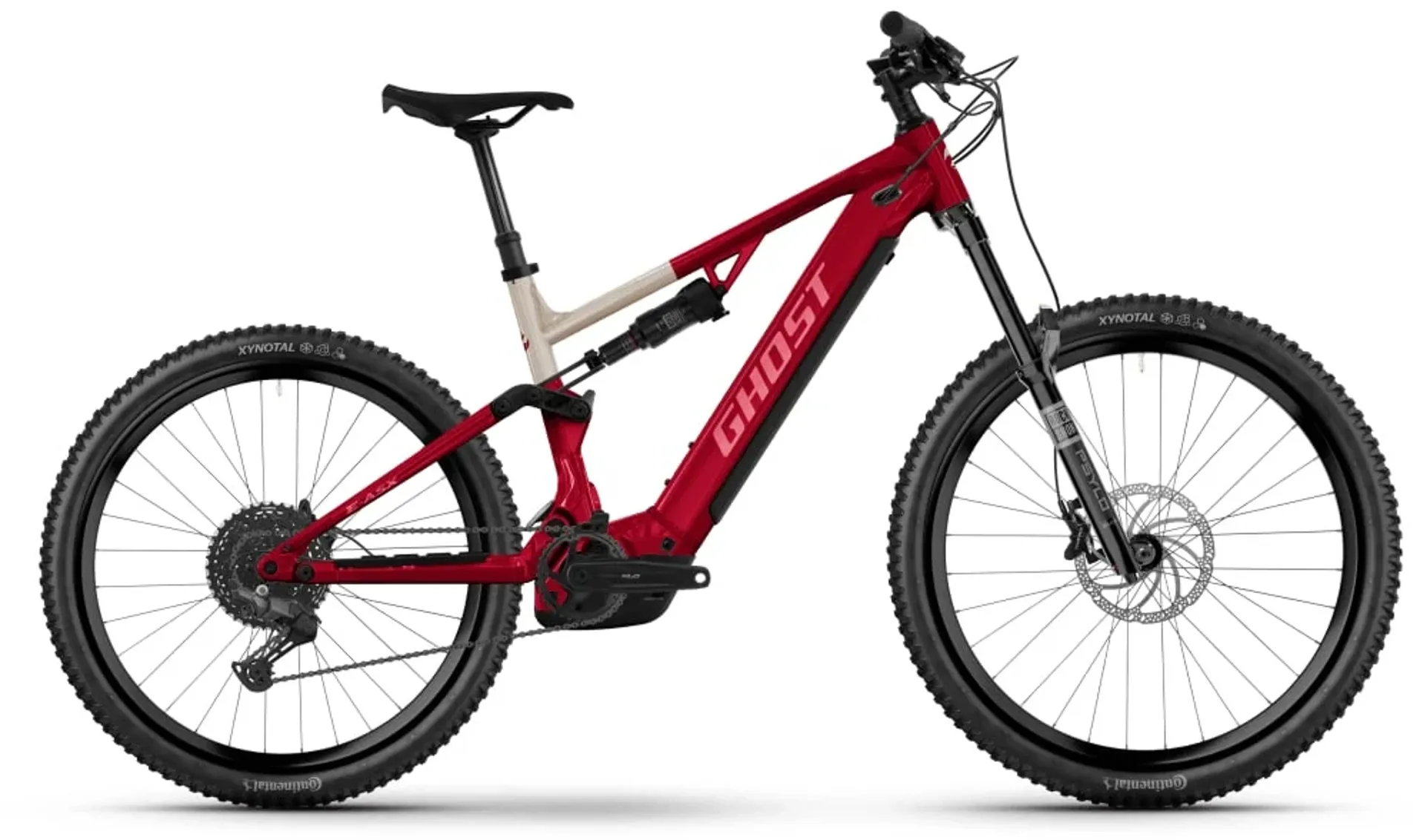

Ghost E-Asx Essential Electric Full Suspension MTB - Rebel Red/Coffee

£3,899.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

Returns can be submitted though your ‘Account’, choosing the ‘Orders’ tab, and selecting the item you wish to return.

Once you have notified us that you are cancelling your contract, any sum debited to UK Electric Bike Centre LTD (in respect of goods provided by us and delivery services provided by the delivery service provider) from your debit or credit card will be re-credited to your account as soon as possible and in any event within 30 days of your order PROVIDED THAT the Goods in question are returned by you and received by us in the condition they were in when delivered to you. In the case of a Free Bicycle Trial fair wear & tear will be accepted. If you do not return the Goods delivered to you by the delivery service provider or do not pay the costs of delivery, we shall be entitled to deduct the direct costs of recovering the Goods from the amount to be re-credited to you. Please retain the bike box for bike returns.

You have a legal obligation to take reasonable care of the Goods while they are in your possession. If you fail to comply with this obligation, we may have a right of action against you for compensation.

For all complaints, please contact the UK Electric Bike Centre LTD head office using the contact details found on our contact page.

REFUND POLICY

The following refund policy applies to all transactions made through this website, unless expressly stated otherwise.

In the unlikely event that you are not happy with your purchases, please feel free to return your goods unused and in their original packaging within 14 days of the date of receipt for a full exchange or refund.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase, Cheque payments will be refunded by check or electronic bank transfer but due to banking restrictions can only be refunded 14 days after the product return date. Due to the high incidence of fraud, we regret that we are unable to offer any refund without a valid receipt.

UK Electric Bike Centre will deduct a handling fee of £100 for any ebikes returned to us for postage and administration.

Ghost E-Asx Essential Electric Full Suspension MTB - Rebel Red/Coffee

Brand:Ghost

Code:GHO-FSM

The E-ASX 160 Essential features a sophisticated aluminium frame, a snappy Bosch motor and a solid 160 mm travel.

This e-mountain bike for touring and trails is the perfect companion for demanding descents and challenging uphills. The battery is elegantly integrated into the frame and the MX wheel concept provides additional confidence on steep downhills. The new Bosch CX Motor with up to 85Nm gives you the power you need even on the steeper hills.

This full suspension ebike from GHOST is a reliable companion for challenging trails, high-speed descents, and ambitious ascents.

Features:

  • Drive Unit: Bosch Performance Line CX Up To 100Nm
  • Display: Bosch Kiox 300 + LED Remote
  • Battery: Bosch Powertube 600Wh
  • Fork: Rockshox Psylo Silver RC Crown Adjust Solo Air 160 mm
  • Shock: Rockshox Deluxe Select R 210x55mm DebonAir+
  • Brake System: Tektro Hydraulic Disc brake HD-M535 4 pistons resin pad 203 mm
  • Rear Derailleur: Shimano CUES RD-U6000 10/11s Shadow+
  • Chain: Shimano CN-LG500 9-11s LINKGLIDE
  • Cassette: Shimano CUES CS-LG300-10 HG
  • Seatpost: XLC Dropperpost Dropper SP-T21 Dia. 34.9 mm Travel: 150 mm 450 mm
Technical Information
  • Drive unit
    Bosch Performance Line CX
  • Torque
    85 Nm
  • Display
    Bosch Kiox 300 + LED Remote
  • Battery
    Bosch Powertube 600Wh
  • Frame
    High Aluminium Uni
  • Fork
    Rockshox Psylo Silver RC Crown Adjust Solo Air 160 mm
  • Shock
    Rockshox Deluxe Select R 210x55mm DebonAir+
  • Wheels
    Continental Xynotal Trail Endurance foldable skin SL 60-622
  • Brake system
    Tektro Hydraulic Disc brake HD-M535 4 pistons resin pad 203 mm
  • Rear derailleur
    Shimano CUES RD-U6000 10/11s Shadow+
  • Shifters
    Shimano Triggershift CUES SL-U6000-10R Rapidfire+
  • Crankset
    XLC CR-E40 DM Chainring BDU38 + CR-E18 Crankarms 165
  • Chain
    Shimano CN-LG500 9-11s LINKGLIDE
  • Cassette
    Shimano CUES CS-LG300-10 HG
  • Stem
    XLC Not Adjustable ST-M50 Dia. 35 mm L: 50 mm A-Head
  • Handlebar
    XLC Riser Bar HB-M34 Dia. 35 mm Rise: 20 mm backsweep 9°
  • Saddle
    XLC MTB Sport Comfort SA-S11 Steel Rail 155 mm
  • Seatpost
    XLC Dropperpost Dropper SP-T21 Dia. 34.9 mm Travel: 150 mm 450 mm
  • Model year
    2026
Sizing Information

Bike Size FAQ

Choosing the right sized bike depends on a few things: the type of bike, your height, your arm and leg length, your confidence and your riding style. Having the right size bike means that you are comfortable and in control.

For a bike with a crossbar you should be able to stand over the top tube with around 2 inches (approx. 5 cm) of clearance. Most bike frame sizes are measured from the centre of the bottom bracket to the top of the seat clamp.

Bike frame measurement diagram

Available Frame Sizes

Size Frame Size
Small 41 cm
Medium 43 cm
Large 46 cm
X-Large 50 cm

How high should my saddle be?

Correct saddle height is important for comfort and pedalling efficiency. Whilst stood next to the bike, set the saddle to the height of your hip bone. Ensure the saddle is not extended past the minimum insertion mark on the seat post. If this is the case you may need to consider a larger frame.
